Pioneer SX-1010 restore and recap

I got a SX-1010 to restore and recap from Brian in New York, who is also is a follower on here (Hi Brian!). Caps I'll be using are Panasonic FM and FC for the preamp sections, Nichicon PW for the power supply and power amp, Nichicon KL for the orange low noise caps and Panasonic ECQ film caps for anything under 1uF. The filter caps are being replaced with UCC 18000uF 75v caps.

Here are some before photos:

FM muting


Phono amp


Tone amp


Protection board


Power amp board (there are two of these, both look the same so I'll just have one photo.)


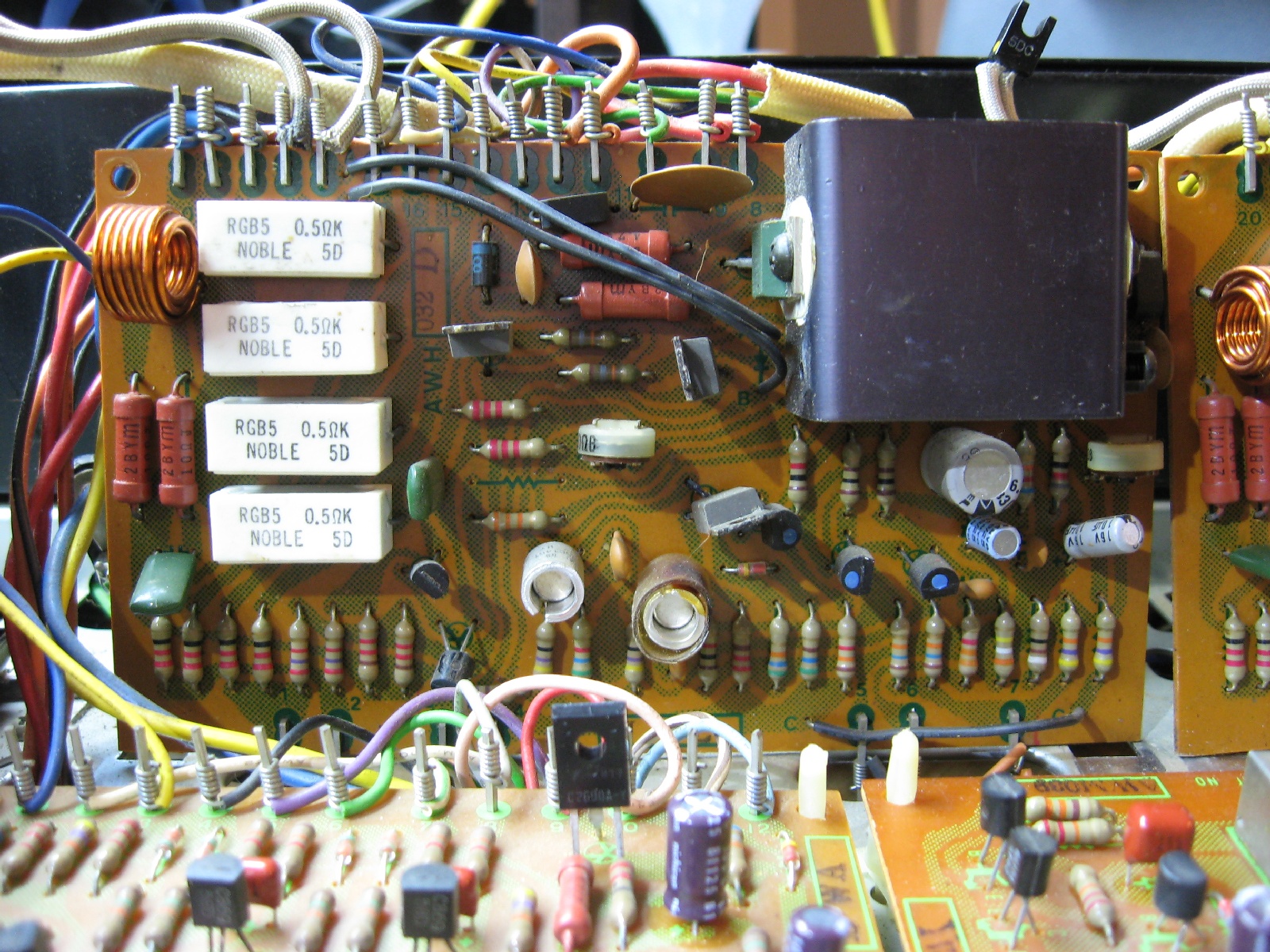

Power supply


Blown cap


Old filter caps



Before LED conversion

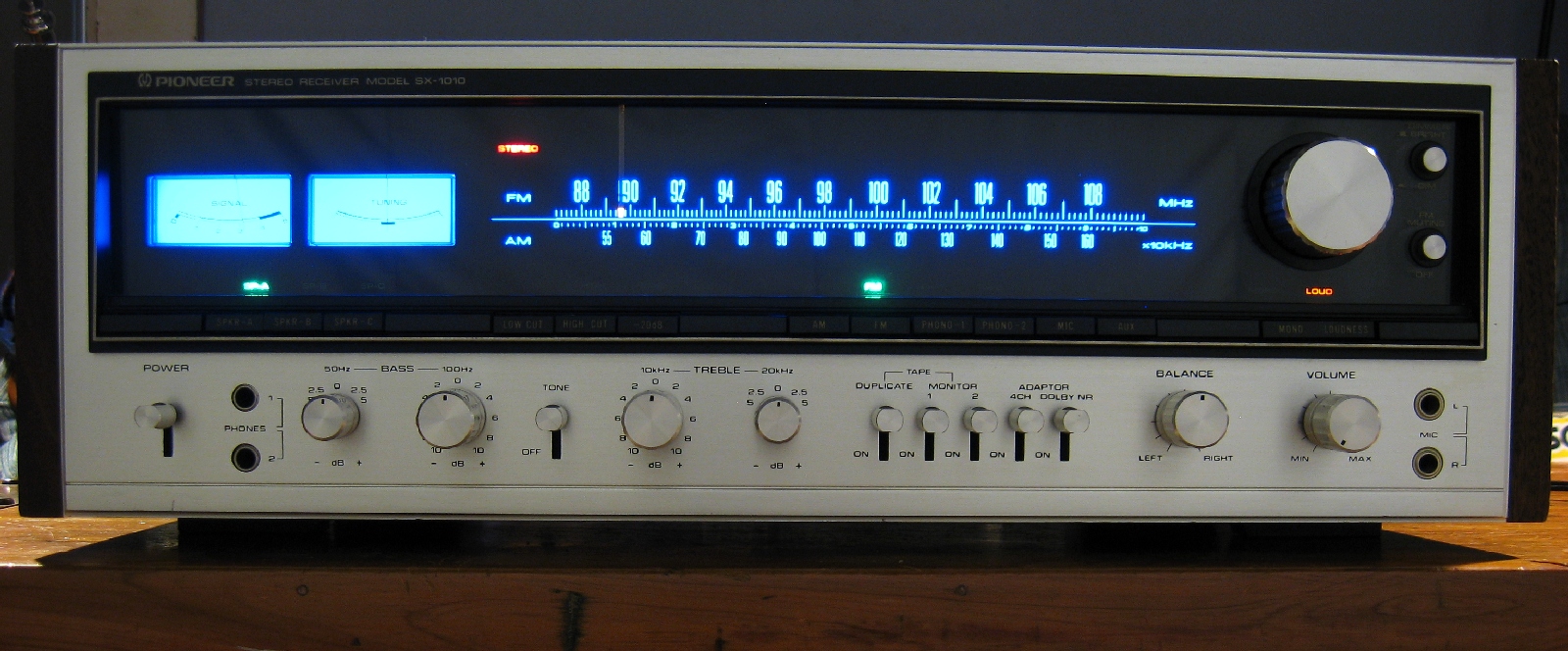

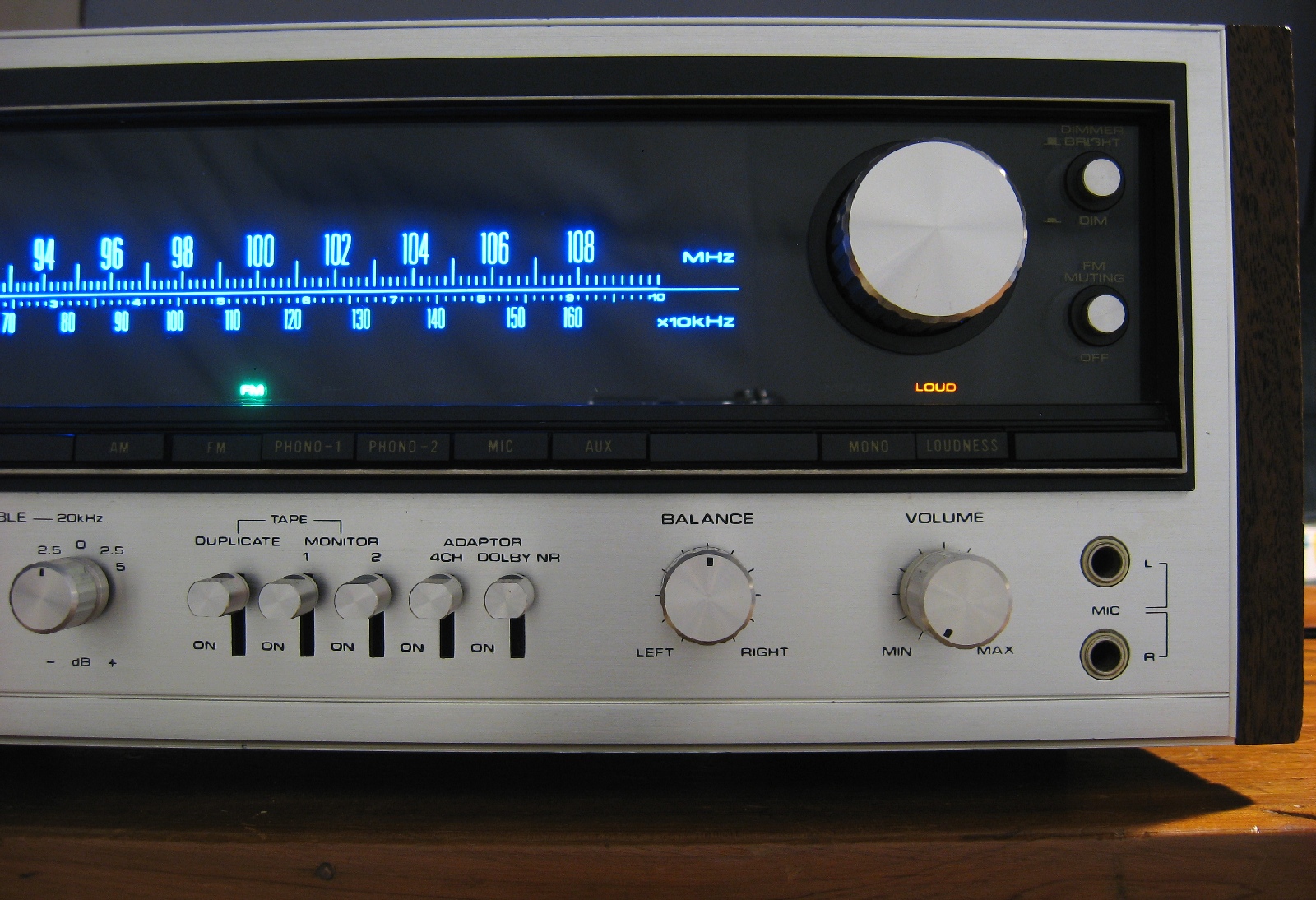

And after! WOW, are those LED's are blue! The photo can't even begin to show how blue it is. Note: the indicator lamps are still original, the replacements for those aren't going to be here until Thursday.



After recap photos!

Tuner board, I did not replace a lot of parts on here, the ones that are circled are the ones that were replaced.


FM muting


Phono amp


Tone amp


Protection board


Power amp (both boards look like this)


Power supply


New filter caps


Two 2.2uF poly film bypass caps were put across the terminals to improve HF filtering.


And it's put back together!










It has been burning in for about three days now (2/2/2011) and sounds beautiful, very warm sounding with powerful bass, clean treble and power to spare. It didn't sound like this before the recap, that's for sure! I got to bench test it, 120 watts per channel before clipping, both channels driven at 1kHz into 8 ohms. Spec for it at 1kHz into 8 ohms is 110 watts per channel, so 10 watts more then spec. Not bad at all!

This concludes the post, as always feel free to leave comments or questions.
